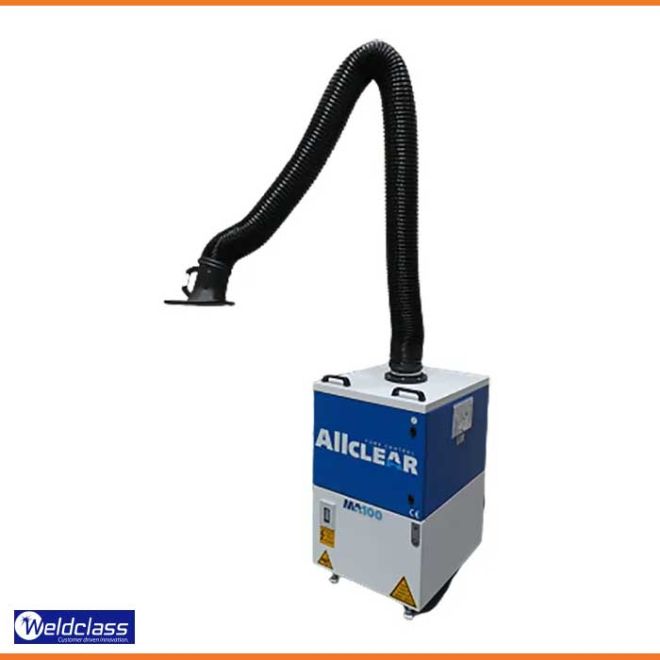

Weldclass ALLCLEAR MA100 Mobile Welding Fume Extractor with Single 3m Arm
Product Code: MA100 (91100MA1)
The ALLCLEAR® MA100 is a popular 230V mobile fume extraction and filtration unit for welding and grinding, equipped with a 3-metre arm. It is one of the most compact and economical extraction units in the ALLCLEAR range. With cleanable cartridge filter for extended filter life, the MA100 offers significantly lower operating costs vs units with traditional 'box filters'.
A special deflector plate above the filter further extends filter life and virtually eliminates the risk of fire. Convenient access door allows for in-situ cleaning, and avoids operator exposure to collected fume dust. Mounted on casters for mobility, and operates off single-phase ~230V 10A power supply.
For Bulky Freight: In Checkout you must Select ROAD FREIGHT - as other services listed can not accept bulkly items. OR CONTACT US TODAY on 1300 79 33 22 or by email sales@safepak.com.au to get a COMPETITIVE no obligations quote directly to your door!
Weldclass ALLCLEAR MA100 Mobile Welding Fume Extractor with Single 3m Arm - Code: MA100 (91100MA1)
Features:
- Cleanable cartridge filter for extended filter life & significantly lower operating costs vs traditional box filters
- Special spark deflection / impact plate shields the filter from sparks & coarse particles (redirecting them to the dust collection tray), significantly reducing the risk of burnout / fire**, and further increasing filter life
- Cleanable filter provides consistent air flow rate (minimal drop in suction power) over the life of the filter
- Special cleaning door allows for ‘in situ’ filter cleaning (no need to remove filter)
- Easy and safe access to ‘clean’ side of filter = operator is not exposed to captured fume dust during cleaning
- Large 14m² filter surface area & nanofiber structure provide high filtration efficiency and long life
- High extraction performance (max air flow: 2,500m³ / hour)
- Compact and mobile
- Ergonomic design with easy access to all functions & replacement filters
- Collection tray allows safe removal of dust ejected from filter cleaning
- Exhaust airflow is directed upwards & away from the floor/ground, for minimal disturbance of dust in surrounding environment
- Arcrobat arm joints use special materials & design to provide long-term use and prevent wear/fatigue
- Durable hose material resist wear and high temperatures
- Lightweight and durable suction hood catches particles with a large inlet
Specifications:
- Power supply: Single phase ~230V 10A
- Dimensions (mm): L780 x W600 x H1000
- Weight: ~110kg
- Motor size: 1.1kw
- Max air flow: 2,500m³ / hour
- Air flow at suction point: 1,600m³ / hour
- Filter surface area: 14m²
- Filter cleaning: Manual (access via filter cleaning door, clean with compressed air nozzle)
- Noise level: 74 dBA
- Sound insulation: Acoustic sponge
- Body material: Galvanised steel
- Fan: Aluminium
