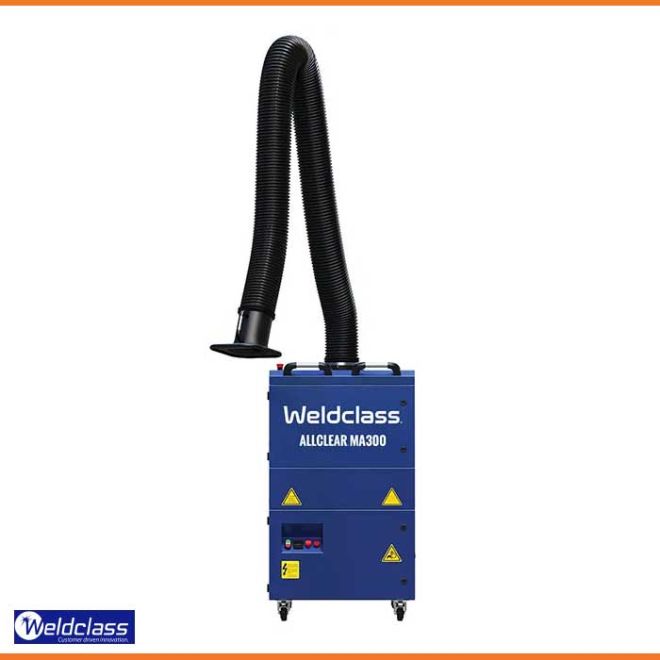

Weldclass ALLCLEAR MA300 AUTO Mobile Welding Fume Extractor with Single 3m Arm
Product Code: MA300 (91300AMA1)
The ALLCLEAR® MA300 AUTO is a 230V mobile fume extraction and filtration unit for welding and grinding, with automatic compressed-air filter cleaning system for high efficiency and ease of use. With cleanable cartridge filter for extended filter life, the MA300 AUTO offers significantly lower operating costs vs units with traditional 'box filters'.
A special deflector plate above the filter further extends filter life and virtually eliminates the risk of fire. Equipped with single 3-metre arm, working hour counter, filter fullness indicator, malfunction warning, and unique dust collection bin. Mounted on casters for mobility, and operates off single-phase ~230V 10A power supply.
For Bulky Freight: In Checkout you must Select ROAD FREIGHT - as other services listed can not accept bulkly items. OR CONTACT US TODAY on 1300 79 33 22 or by email sales@safepak.com.au to get a COMPETITIVE no obligations quote directly to your door!
Weldclass ALLCLEAR MA300 AUTO Mobile Welding Fume Extractor with Single 3m Arm - Code: MA300 (91300AMA1)
Features:
- Cleanable cartridge filter for extended filter life & significantly lower operating costs vs traditional box filters
- Automatic filter cleaning saves operator down-time (cleaning cycle activates when unit is switched off and/or if airflow drop is detected)
- Special spark deflection / impact plate shields the filter from sparks & coarse particles (redirecting them to the dust collection bin), significantly reducing the risk of burnout / fire**, and further increasing filter life
- Cleanable filter provides consistent air flow rate (minimal drop in suction power) over the life of the filter
- ‘Pulse’ cleaning system (accumulates then releases a burst of compressed air) maintains better filter condition and extends filter life
- Large 14m² filter surface area & nanofiber structure provide high filtration efficiency and long life
- Unique drawer/bin allows safe removal of dust (ejected from filter cleaning) with minimal disturbance, & can be accessed/used when machine is running to prevent down-time
- Exhaust airflow is directed upwards & away from the floor/ground, for minimal disturbance of dust in surrounding environment
- High extraction performance (max air flow: 3,000m³ / hour)
- Compact and mobile
- Ergonomic design with easy access to all functions & replacement filters
- Arcrobat arm joints use special materials & design to provide long-term use and prevent wear/fatigue
- Durable hose material resist wear and high temperatures
- Lightweight and durable suction hood catches particles with a large inlet
Specifications:
- Power supply: Single phase ~230V 10A
- Dimensions (mm): L700 x W780 x H1200
- Weight: ~190kg
- Motor size: 1.1kw
- Max air flow: 3,000m³ / hour
- Air flow at suction point: 1,800m³ / hour
- Filter surface area: 14m²
- Filter cleaning: Automatic - requires unit to be connected to compressed air supply.
- Noise level: 74 dBA
- Sound insulation: Acoustic sponge
- Body material: Galvanised steel
- Fan: Aluminium
- Air supply pressure required: 3-4 bar / 300-400 kPa / 40-60 psi
- Air supply flow required: Because air is gradually accumulated in a reservoir inside the AllClear unit, air compressor flow (LPM/CFM) capacity is not critical
