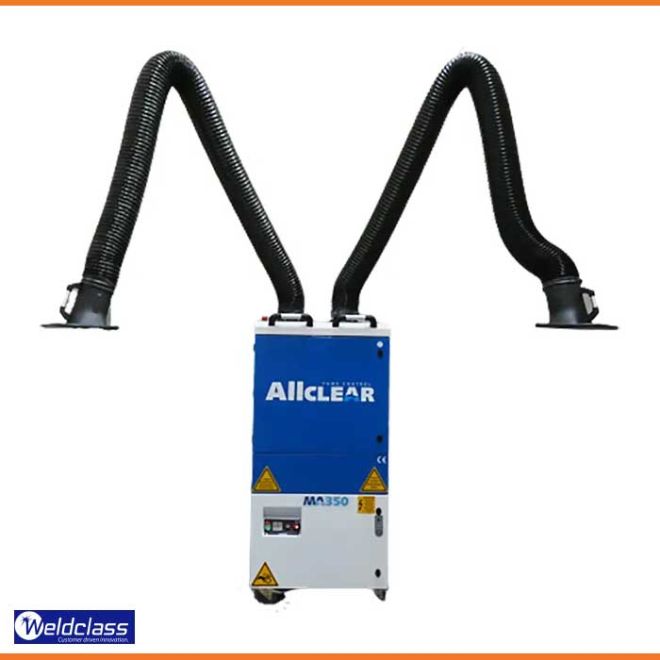

Weldclass ALLCLEAR MA350 STD Mobile Welding Fume Extractor with Twin 3m Arm
Product Code: MA350-STD (91350MA3)
The ALLCLEAR® MA350 is a 415V mobile fume extraction and filtration unit for welding and grinding. With cleanable cartridge filter for extended filter life, the MA350 offers significantly lower operating costs vs units with traditional 'box filters'. A special deflector plate above the filter further extends filter life and virtually eliminates the risk of fire
Convenient access door allows for in-situ cleaning, and avoids operator exposure to collected fume dust. Equipped with two 3-metre arms, working hour counter, filter fullness indicator, malfunction warning, and a unique dust collection bin. Mounted on casters for mobility, and operates off 3-phase 415V power supply.
For Bulky Freight: In Checkout you must Select ROAD FREIGHT - as other services listed can not accept bulkly items. OR CONTACT US TODAY on 1300 79 33 22 or by email sales@safepak.com.au to get a COMPETITIVE no obligations quote directly to your door!
Weldclass ALLCLEAR MA350 STD Mobile Welding Fume Extractor with Twin 3m Arm - Code: MA350-STD (91350MA3)
Features:
- Cleanable cartridge filter for extended filter life & significantly lower operating costs vs traditional box filters
- Special spark deflection / impact plate shields the filter from sparks & coarse particles (redirecting them to the dust collection bin), significantly reducing the risk of burnout / fire**, and further increasing filter life
- Cleanable filter provides consistent air flow rate (minimal drop in suction power) over the life of the filter
- Special filter cleaning door allows for ‘in situ’ cleaning (no need to remove filter)
- Easy and safe access to ‘clean’ side of filter = operator is not exposed to captured fume dust during cleaning
- Dual filters with large 28m² surface area & nanofiber structure provide high filtration efficiency and long life
- Pre-separator “impact plate” shields filters from coarse particles & sparks, reducing the risk of burnout and increasing filter life
- Unique drawer/bin allows safe removal of dust (ejected from filter cleaning) with minimal disturbance, & can be accessed/used when machine is running to prevent down-time
- Exhaust airflow is directed upwards & away from the floor/ground, for minimal disturbance of dust in surrounding environment
- High extraction performance (max air flow: 3,500m³ / hour)
- Compact and mobile
- Ergonomic design with easy access to all functions & replacement filters
- Arcrobat arm joints use special materials & design to provide long-term use and prevent wear/fatigue
- Durable hose material resist wear and high temperatures
- Lightweight and durable suction hood catches particles with a large inlet
Specifications:
- Power supply: Three phase 415V
- Power plug required: 415V ≥10A, plug not included*
*Requires 415V plug, with amperage 10A or higher - Dimensions (mm): L720 x W785 x H1480
- Weight: ~130kg
- Motor size: 2.2kw
- Max air flow: 3,500m³ / hour
- Air flow at suction point: 1,600m³ / hour
- Filter surface area: 28m² (2 x 14m²)
- Filter cleaning: Manual (access via filter cleaning door, clean with compressed air nozzle)
- Noise level: 74 dBA
- Sound insulation: Acoustic sponge
- Body material: Galvanised steel
- Fan: Aluminium
